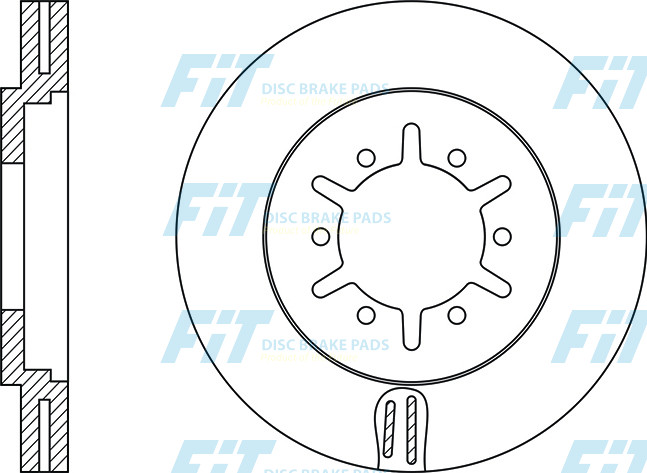

| Specification | |
|---|---|
| Type | Vented |
| Outter Ø | 260 |
| Num. of holes | 6 |
| Disc Thickness (Max) | 26 |
| Height | 36.9 |
| Centering Diameter | 81 |
| Pitch Circle Ø | 103 |
| Front/Rear | Front |
| Owner | Number |
|---|---|
| AP | 24576 |
| Blue Print | ADN14337 |
| BRECO | BS 8196 |
| BREMBO | 09.6744.10 |
| DELPHI | BG3242 |
| FERODO | DDF443 |
| FERODO | DDF601 |
| Fri.tech. | DF1265 |
| GIRLING | 6030011 |
| JAPANPARTS | DI-143 |
| LPR | N2711V |
| LUCAS | DF3001 |
| LYNXauto | BN-1802 |
| MAGNETI MARELLI | 353613244240 |
| MINTEX | MDC689 |
| NECTO | WN816 |
| NISSAN | 40206-02N00 |
| NISSAN | 40206-02N01 |
| NISSAN | 40206-09G01 |
| NISSAN | 40206-09G02 |
| NISSAN | 40206-5T500 |
| NISSAN | 4020609G03 |
| NISSAN | 40206VY10A |
| NISSAN | D0206-02N0M-VA |
| NISSHINBO | ND2020 |
| PAGID | 50205 |
| PILENGA | V882 |
| QH | BDC4247 |
| REMSA | 6450.10 |
| ROADHOUSE | 6450.10 |
| SBS | 1815202236 |
| TEXTAR | 92074700 |
| TRUSTING | DF1265 |
| TRW | DF3001 |
| WOKING | D6450.10 |
| Copyright © 2024 | |
| Years | Eng Vol | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 11.85~09.94 | 2400 | KA24E | D21 | FR0198VFR0443V | FP0266FP0333 | FT2130FT2137 | ||
| 01.97~12.06 | 2500 | YD25DDTI | D22 | FR0198VFR0338V | FP0830FP0333 | FT2130FT2137 | ||
| 01.97~12.04 | 2700 | TD27 | D22 | FR0443VFR0198V | FP0266FP0333 | FT2130 | ||
| 09.94~09.97 | 2400 | KA24E | D21U | FR0198VFR0443V | FP0266FP0333 | FT2130FT2137 | ||
| 01.97~12.06 | 2400 | KA24DE | D22 | FR0198VFR0138V | FP0830FP0333 | FT2130FT2137 | ||
| 01.97~06.99 | 2400 | KA24E | D22 | FR0138VFR0198V | FP0333 | FT2130FT2137 |
| 10.97~01.11 | 3200 | QD32 | F23 | FR0198VFR1020V | FP0333FP2107 | FT2125 | ||
| 07.92~01.03 | 2700 | TD27 | F23 | FR0198V | FP2107FT2121 | FT2125 |
| 01.97~12.02 | 2700 | TD27 | VE24 | FR0198V | FP0333 | FT2130 | ||
| 01.86~12.97 | 2500 | TD25 | E24 | FR0198VFR0443V | FP0333FP0266FP1191 | FT2130FT2129 | ||
| 01.86~06.97 | 2000 | NA20S | E24 | FR0198VFR0443V | FP0333FP0266 | FT2130 | ||
| 05.89~11.95 | 2400 | Z24I | E24 | FR0198V | FP0333 | FT2130 | ||
| 11.86~12.97 | 2300 | TD23 | E24 | FR0198VFR0443V | FP0333FP0266 | FT2130FT2129 | ||
| 01.86~12.97 | 2400 | Z24S | E24 | FR0198V | FP0266FP0333 | FT2129FT2130 |
| 01.92~08.04 | 2700 | TD27 | P_F23 | FR0443VFR1020VFR0198V | FP2107FP0266FP0333 | FT2125FT2131FT1173FT2130 | ||
| 06.99~06.07 | 2000 | KA20DE | H2F23 | FR0198V | FP0333 | FT2130FT2125 | ||
| 06.95~06.99 | 2500 | TD25 | N4F23 | FR0198V | FP0333 | FT2125 |
| 02.97~03.12 | 2400 | KA24DE | D22 | FR0198VFR0443VFR0557VFR0943VFR0138V | FP0333FP0266 | FT2130FT2137 | ||
| 11.01~03.12 | 2500 | YD25DDTI | D22 GR | FR0338VFR0198V | FP0830FP0333 | FT2137FT2130 | ||
| 02.97~07.05 | 2400 | Z24S | D22 GL | FR0443VFR0557VFR0138VFR0943VFR0198V | FP0266FP0333 | FT2130FT2137 |
| 11.01~11.11 | 2500 | YD25DDTI | D22 RHD | FR0198VFR0338VFR0557V | FP0333FP0830 | FT2130FT2137 | ||
| 02.98~11.01 | 2400 | KA24E | D22 | FR0198VFR0557VFR0138V | FP0333 | FT2130FT2137 | ||
| 02.98~11.01 | 2500 | TD25 | D22 | FR0198VFR0557V | FP0333 | FT2130 | ||
| 01.08~01.12 | 2500 | YD25DDTI | LCD22 | FR0198VFR0338VFR0557V | FP0333FP0830 | FT2137FT2130 | ||
| 11.01~01.08 | 2400 | KA24DE | D22 | FR0198VFR0338VFR0557V | FP0333FP0830 | FT2137FT2130 | ||
| 11.01~11.11 | 2500 | YD25DDTI | D22 LHD | FR0198VFR0338VFR0557V | FP0830FP0333 | FT2130FT2137 | ||
| 04.92~02.98 | 2400 | KA24E | D21 | FR0198VFR0138V | FP0333 | FT2130FT2137 |
| 08.96~04.01 | 3200 | QD32 | VWE24 | FR0198VFR0557V | FP0333 | FT2130 | ||
| 05.97~05.01 | 3200 | QD32 | CWGE24 | FR0557VFR0198V | FP0333 | FT2130 | ||
| 08.90~05.97 | 2700 | TD27 | VRE24 | FR0198VFR0443V | FP0266FP0333 | FT2129FT2130 |
| 10.09~08.18 | 2700 | TD27 | D22SS | FR0198V | FP0266FP0333 | FT2130 | ||
| 01.08~11.21 | 2400 | KA24 | LCD22S | FR0338VFR0138VFR0198V | FP0333FP0830 | FT2137FT2130 |
| 09.09~11.09 | 2400 | KA24DE | LCD22T | FR0198VFR0557VFR0138V | FP0333 | FT2137FT2130 | ||
| 09.09~11.09 | 2500 | YD25DDTI | LCD22T | FR0198VFR0338VFR0557V | FP0333FP0830 | FT2137FT2130 |
| 11.85~08.89 | 3000 | VG30 | D21 | FR0138VFR0198V | FP0333 | FT2130FT2129FT2125FT2124 | ||
| 08.89~09.94 | 3000 | VG30E | D21 | FR0198VFR0138V | FP0333 | FT2137FT2130 | ||
| 09.94~01.96 | 3000 | VG30E | D21U | FR0198VFR0138V | FP0333 | FT2130FT2137 |
| 01.97~06.99 | 2400 | KA24E | FMD22 | FR0138VFR0198V | FP0333 | FT2130FT2137 | ||
| 06.99~08.02 | 2700 | TD27 | LBD22 | FR0198V | FP0333 | FT2130 |
