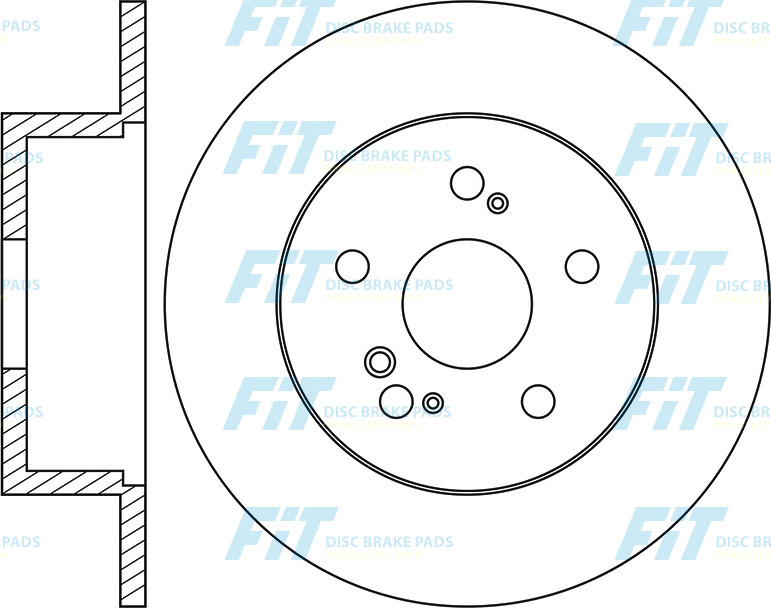

| Specification | |
|---|---|
| Type | Solid |
| Outter Ø | 290 |
| Num. of holes | 5 |
| Disc Thickness (Max) | 12 |
| Height | 68.7 |
| Centering Diameter | 62 |
| Pitch Circle Ø | 114.3 |
| Front/Rear | Rear |
| Disc Thickness (Min) | 10.5 |
| Drum Ø: | 190 |
| Structure Material | G3000 |
| Owner | Number |
|---|---|
| AC Delco | AC2631D |
| ATE | 24.0112-0164.1 |
| BENDIX | 562276B |
| BOSCH | 0 986 479 200 |
| BREMBO | 08.A608.10 |
| CAR | 142.1201 |
| CAR RACING | HPD 1201 |
| CIFAM | 800-802 |
| DELPHI | BG3779 |
| FENOX | TB218100 |
| FERODO | DDF1380 |
| Fri.tech. | DF963 |
| GIRLING | 6045614 |
| GRAF | DF29802 |
| INTERBRAKE | TT221P |
| JURID | 562276J |
| KWP | 129802 |
| LPR | T2008P |
| LUCAS | DF4561 |
| LYNXauto | BN-1147 |
| Metelli | 23-0802 |
| NECTO | WN1345 |
| NISSHINBO | ND1039K |
| PAGID | 54442 |
| PAGID | 8DD 355 112-421 |
| PILENGA | 5479 |
| QH | BDC5481 |
| SBS | 1815204576 |
| TEXTAR | 92144200 |
| TOYOTA | 42431-08030 |
| TOYOTA | 42431-08040 |
| TOYOTA | 42431-28090 |
| TOYOTA | 42431-28091 |
| TOYOTA | 42431-28140 |
| TOYOTA | 42431-28150 |
| TOYOTA | 42431-28160 |
| TOYOTA | 42431-44030 |
| TOYOTA | 4243128120 |
| TRUSTING | DF963 |
| TRW | DF4561 |
| TRW | DF7177 |
| ZIMMERMANN | 590.2591.00 |
| Copyright © 2024 | |
| Years | Eng Vol | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 01.00~01.06 | 2400 | 2AZ-FE | ACR30 | FR0274V | FP0906FP1227 | FR0341 | FP0995 | |
| 01.01~01.06 | 2400 | 2AZ-FXE | AHR10W | FR0119V | FP1227FP0923 | FR0341 | FP0995 | FT0846 |
| 01.99~01.06 | 2400 | 2AZ-FE | ACR40W | FR0119VFR0274V | FP1227FP0906FP1072 | FR0341 | FP0995 | FT0846 |
| 05.01~12.09 | 2000 | 3S-FE | CLM20L | FR0119V | FP0707 | FR0341 | FP0995 | |
| 05.01~01.06 | 2000 | 1CD-FTV | CLM20L | FR0119V | FP0707 | FR0341 | FP0995 | FT0846 |
| 05.01~12.09 | 2000 | 1AZ-FE | ACM20L | FR0119V | FP0923 | FR0341 | FP0995 | FT0846 |
| 12.06~01.10 | 3500 | 2GR-FE | GSL20L | FR0274V | FP0906 | FR0341 | FT0871FP0995 | FT0846 |
| 12.06~01.10 | 3500 | 2GR-FE | GSL20 | FR0274V | FP0906 | FR0341 | FP0995FT0871 | FT0846 |
| 12.06~01.10 | 3500 | 2GR-FE | GSL25L | FR0274V | FP0906 | FR0341 | FP0995 | FT0846 |
| 01.03~12.06 | 3300 | 3MZ-FE | MCL25 | FR0274V | FP0906 | FR0341 | FP0995 | FT0846 |
| 01.03~12.06 | 3300 | 3MZ-FE | MCL20L | FR0274V | FP0906 | FR0341 | FT0871FP0995 | FT0846 |
| 01.01~01.09 | 2400 | 2AZ-FE | ACM26W | FR0119V | FP0923 | FR0341 | FP0995 | FT0846 |
| 01.01~01.09 | 2400 | 2AZ-FE | ACM21W | FR0119V | FP0923 | FR0341 | FP0995 | FT0846 |
| 01.14~12.21 | 2000 | 3ZR-FAE | ZRR85 | FR0540V | FP1210 | FR0341 | FT0846 | |
| 06.07~04.14 | 2000 | 3ZR-FAE | ZRR75 | FR0540V | FP1210 | FR0341 | FP0995 | FT0846 |
| 06.07~04.10 | 2000 | 3ZR-FAE | ZRR70 | FR0540V | FP1210 | FR0341 | FP0995FT1207 | FT0846 |
| 01.14~06.15 | 2000 | 3ZR-FAE | ZRR80 | FR0540V | FP1210 | FR0341 | FT1207 | FT0846 |
| 12.99~01.06 | 3000 | 1MZ-FE | MCR30W | FR0274V | FP0906 | FR0341 | FP0995 | FT0846 |
| 12.99~01.06 | 3000 | 1MZ-FE | MCR40W | FR0119V | FP1227FP1072 | FR0341 | FP0995 | FT0846 |
| 02.00~01.06 | 2400 | 2AZ-FE | ACR30W | FR0274VFR0119V | FP0906FP1227FP1072 | FR0341 | FP0995 | FT0846 |
| 05.02~05.08 | 2400 | 2AZ-FXE | ATH10W | FR0274V | FP0906 | FR0341 | FP0995 | |
| 05.02~05.08 | 2400 | 2AZ-FE | ANH10W | FR0274V | FP0906 | FR0341 | FP0995 | FT0846 |
| 05.02~01.08 | 3000 | 1MZ-FE | MNH10 | FR0274V | FP0906 | FR0341 | FP0995 | FT0846 |
| 05.02~04.08 | 3000 | 1MZ-FE | MNH15W | FR0274V | FP0906 | FR0341 | FP0995 | FT0846 |
| 05.02~05.08 | 2400 | 2AZ-FE | ANH15W | FR0274V | FP0906 | FR0341 | FP0995 | FT0846 |
| 02.00~01.06 | 2400 | 2AZ-FE | ACR30R | FR0274VFR0119V | FP1227FP0906FP1072 | FR0341 | FP0995 | FT0846 |
| 05.01~01.06 | 2000 | 1CD-FTV | CLR30L | FR0119V | FP1227FP1072 | FR0341 | FP0995 | FT0846 |
| 01.00~01.06 | 2400 | 2AZ-FE | ACR30L | FR0119VFR0274V | FP1227FP1072FP0906 | FR0341 | FP0995 | FT0846 |
| 09.04~05.11 | 2000 | 1AZ-FSE | ANM10G | FR0119V | FP1052 | FR0341 | FP0995 | FT0846 |
| 09.04~05.11 | 2000 | 1AZ-FSE | ANM15 | FR0119V | FP1052 | FR0341 | FP0995 | FT0846 |
| 09.09~01.18 | 1800 | 2ZR-FAE | ZGM15_ | FR0119V | FP1052 | FR0341 | FP0995 | |
| 09.04~09.09 | 2000 | 1AZ-FSE | ANM10W | FR0119V | FP1052 | FR0341 | FP0995 | |
| 09.09~01.18 | 1800 | 3ZR-FAE | ZGM11G | FR0119V | FP1052 | FR0341 | FP0995 | FT0846 |
| 09.04~05.11 | 1800 | 1ZZ-FE | ZNM10W | FR0119V | FP1052 | FR0341 | FP0995 | FT0846 |
| 09.09~01.18 | 1800 | 3ZR-FAE | ZGM11W | FR0119V | FP1052 | FR0341 | FP0995 | FT0846 |
| 05.01~12.09 | 2000 | 1AZ-FE | ACM20L | FR0119V | FP0923 | FR0341 | FP0995 | FT0846 |
| 01.01~12.04 | 2000 | 1CD-FTV | CLM20L | FR0119V | FP0923 | FR0341 | FP0995 | FT0846 |
| 08.08~04.10 | 2000 | 3ZR-FE | ZRR70 | FR0540V | FP1210 | FR0341 | FP0995 | FT0846 |
| 04.10~12.16 | 2000 | 3ZR-FAE | ZRR70 | FR0540V | FP1210 | FR0341 | FT1207FP0995 | FT0846 |
