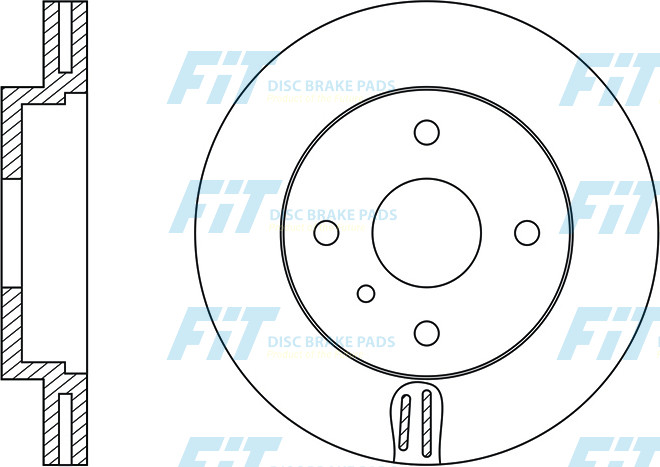

| Specification | |
|---|---|
| Type | Vented |
| Disc Thickness (Max) | 24 |
| Num. of holes | 4 |
| Height | 47.2 |
| Centering Diameter | 60 |
| Front/Rear | Front |
| Pitch Circle Ø | 114.3 |
| Outter Ø | 256 |
| Disc Thickness (Min) | 22 |
| Drum Ø: | 141 |
| Structure Material | G3000 |
| Owner | Number |
|---|---|
| AP | 24906 |
| APEC | DSK2274 |
| ATE | 24.0124-0199.1 |
| BAOJUN (SGMW) | 24537780 |
| BOSCH | 0986479328 |
| BRECO | BS 8511 |
| BREMBO | 09.9483.10 |
| CAR | 142.347 |
| CAR RACING | HPD 347 |
| CHEVROLET | 96328338 |
| CHEVROLET | 96549782 |
| CIFAM | 800-719 |
| CIFAM | 800-921 |
| DAEWOO | 95977409 |
| DAEWOO | 96549782 |
| DELPHI | BG3790 |
| DELPHI | BG4003 |
| FERODO | DDF1257 |
| Fri.tech. | DF099 |
| Fri.tech. | DF923 |
| GM | 24537780 |
| GM | 95977409 |
| GM | 96549782 |
| GRAF | DF29719 |
| HI-Q | SD3017 |
| INTERBRAKE | OP483V |
| KWP | 129719 |
| LPR | O1007V |
| LUCAS | DF7218 |
| LYNXauto | BN-1013 |
| Metelli | 23-0719 |
| Metelli | 23-0921 |
| MILES | K000459 |
| MINTEX | MDC1483 |
| MINTEX | MDC1990 |
| NECTO | WN1274 |
| NIPPARTS | J3300911 |
| NISSHINBO | ND6008 |
| NISSHINBO | ND6009 |
| OEM | 96264591 |
| OEM | 96328338 |
| PAGID | 54199 |
| PAGID | 54335 |
| PAGID | 54336 |
| PILENGA | V844 |
| QH | BDC5352 |
| Raybestos | 980338R |
| REMSA | 6656.10 |
| REMSA | 6959.10 |
| ROADHOUSE | 6656.10 |
| ROADHOUSE | 6959.10 |
| SANGSIN | SD3017 |
| SBS | 1815205009 |
| SBS | 1815205010 |
| SUZUKI | 55311-85Z00 |
| SUZUKI | 55311-85Z10 |
| TEXTAR | 92133500 |
| TEXTAR | 92133600 |
| TRUSTING | DF099 |
| TRUSTING | DF923 |
| TRW | DF7218 |
| TRW | DF7282 |
| WOKING | D6656.10 |
| Copyright © 2024 | |
| Years | Eng Vol | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 07.02~06.06 | 2000 | X20SED | LA69 | FR0435VFR0470V | FP0797 | FR0436 | FP1030 | FT0888 |
| 07.02~06.06 | 2000 | X20SED | LF69 | FR0435VFR0470V | FP0797 | FR0436 | FP1030 |
| 01.07~06.14 | 2000 | Z20DM | J200 | FR0435VFR0470V | FP0797 | FR0501 | FP1315 | |
| 01.03~12.12 | 1600 | F16D3 / LXT | J200 | FR0435VFR0470V | FP0797 | FR0501 | FP1315 | FT0888 |
| 06.04~12.12 | 1400 | F14D3 / L14 | J200 | FR0435VFR0470V | FP0797 | FR0501 | FP1315 | FT0888 |
| 11.04~10.11 | 1800 | T18SED | J200 | FR0435VFR0470V | FP0797 | FR0501 | FP1315 | FT0888 |
| 01.03~03.13 | 1600 | F16D3 / LXT | JJ83 WGN | FR0435VFR0470V | FP0797 | FR0501 | FP1315 | FT0888 |
| 01.03~03.13 | 1800 | F18D3 | JJ83 WGN | FR0435VFR0470V | FP0797 | FR0501 | FP1315 | FT0888 |
| 06.04~03.13 | 1800 | T18SED | M48 RHD | FR0435VFR0470V | FP0797 | FR0501 | FP1315FP1036 | FT0888 |
| 01.03~01.14 | 1600 | F16D3 / LXT | NA19 | FR0435VFR0470V | FP0797 | FP1036FP1315 | FT0888 | |
| 01.04~ | 1600 | F16D3 / LXT | NF19 | FR0435VFR0470V | FP0797 | FR0501 | FP1036FP1315 | FT0888 |
| 01.05~01.14 | 1600 | F16D3 / LXT | NA35 | FR0435VFR0470V | FP0797 | FR0501 | FP1036FP1315 | FT0888 |
| 08.03~01.14 | 1600 | F16D3 / LXT | NF35 | FR0435VFR0470V | FP0797 | FR0501 | FP1036FP1315 | |
| 08.03~01.14 | 1600 | F16D3 / LXT | NA48 | FR0435VFR0470V | FP0797 | FR0501 | FP1315FP1036 | FT0888 |
| 08.03~01.14 | 1400 | F14D3 / L14 | JE48 RHD | FR0435VFR0470V | FP0797 | FR0501 | FP1315 | FT0888 |
| 11.07~10.13 | 2000 | L34/U20SED | J200 | FR0435VFR0470V | FP0797 | FR0501 | FP1315 | FT0888 |
| 11.07~01.14 | 1600 | F16D3 / LXT | JJ53 RHD SDN | FR0435VFR0470V | FP0797 | FR0501 | FP1315 | FT0888 |
| 01.04~01.08 | 1800 | LDA | JD19 | FR0435VFR0470V | FP0797 | FR0501 | FP1036FP1315 | FT0888 |
| 01.04~12.08 | 1600 | A16DMS / L44 | U100 | FR0435VFR0470V | FP1031 | |||
| 01.04~12.08 | 2000 | L88 | U100 | FR0435VFR0470V | FP1031FP0797 |
