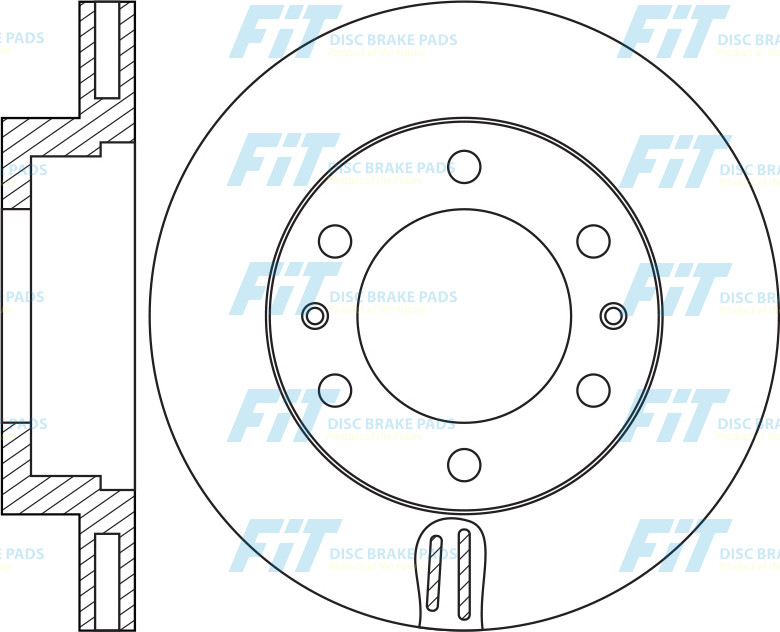

| Specification | |
|---|---|
| Type | Vented |
| Disc Thickness (Max) | 28 |
| Num. of holes | 6 |
| Height | 67.2 |
| Centering Diameter | 108 |
| Front/Rear | Front |
| Pitch Circle Ø | 139.7 |
| Outter Ø | 319 |
| Disc Thickness (Min) | 26 |
| Drum Ø: | 172 |
| Structure Material | G3000 |
| Owner | Number |
|---|---|
| Blue Print | ADT343219 |
| BREMBO | 09.B461.10 |
| DELPHI | BG4557 |
| Febi | 108411 |
| FREMAX | BD4113 |
| Fri.tech. | DF1196 |
| HI-Q | SD4030 |
| LUCAS | DF7367 |
| LYNXauto | BN-1989 |
| Mando | MBC035885 |
| MINTEX | MDC2260 |
| NISSHINBO | ND1034K |
| NK | 2045145 |
| ROTINGER | RT 20225-GL T3 |
| ROTINGER | RT 20225-GL T6 |
| ROTINGER | RT20225GL |
| SANGSIN | SD4098 |
| STELLOX | 6020-1970-SX |
| SWAG | 33107077 |
| TOKICO | TY223 |
| TOYOTA | 43512-04050 |
| TOYOTA | 43512-04051 |
| TOYOTA | 43512-04052 |
| TOYOTA | 43512-0K230 |
| TOYOTA | 43512-0K330 |
| TOYOTA | 43512-35320 |
| TOYOTA | 43512-35321 |
| TOYOTA | 43512-35322 |
| TRUSTING | DF1196 |
| TRW | DF7827 |
| ZEKKERT | BS-5894 |
| ZIMMERMANN | 590284720 |
| Copyright © 2024 | |
| Years | Eng Vol | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 07.07~12.22 | 4000 | 1GR-FE | GSJ15L | FR0551V | FP0976 | FR0328V | FP0606 | FT1098 |
| 01.06~07.14 | 4000 | 1GR-FE | GSJ10L | FR0551V | FP0976 | FR0328VFR0658V | FP0606 | FT1098 |
| 11.10~01.18 | 4000 | 1GR-FE | GSJ15W | FR0551V | FP0976 | FR0658V | FP0606 | FT1098 |
| 11.02~08.09 | 4000 | 1GR-FE | GRN210 | FR0551VFR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 11.02~09.05 | 3000 | 1KZ-TE | KZN215L | FR0551V | FP0976 | FR0328V | FP0606 | FT1098 |
| 11.02~08.09 | 4000 | 1GR-FE | GRN215L | FR0551VFR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 08.02~08.09 | 4700 | 2UZ-FE | UZN210 | FR0551VFR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 08.01~12.04 | 3000 | 1KZ-TE | KZN205L | FR0551V | FP0976 | FR0328V | FP0606 | FT1098 |
| 01.04~10.11 | 4000 | 1GR-FE | GRN245 | FR0551V | FP0976 | FT0871 | ||
| 01.06~01.08 | 4000 | 1GR-FE | GRN265L | FR0551V | FP0976 | FT0871 | ||
| 09.04~05.08 | 4000 | 1GR-FE | GRN250L | FR0551V | FP0976 | FT0871 | ||
| 09.04~09.19 | 2700 | 2TR-FE | TRN265L | FR0551V | FP0976 | FT0871 | ||
| 08.15~ | 3500 | 2GR-FKS | GRN305L | FR0551V | FP0976 | FT0871 | ||
| 08.15~ | 3500 | 2GR-FKS | GRN325L | FR0551V | FP0976 | FT0871 | ||
| 08.15~ | 3500 | 2GR-FKS | GRN310L | FR0551V | FP0976 | FT0871 | ||
| 09.04~ | 2700 | 2TR-FE | TRN245 | FR0551V | FP0976 | FT0871 | ||
| 09.04~08.14 | 2700 | 2TR-FE | TRN240 | FR0551V | FP0976 | FT0871 | ||
| 10.11~08.15 | 4000 | 1GR-FE | GRN245L | FR0551V | FP0976 | FT0871 | ||
| 09.04~06.10 | 2700 | 2TR-FE | TRN260L | FR0551V | FP0976 | FT0871 |
| 11.02~08.05 | 3400 | 5VZ-FE | VZN215W | FR0551V | FP0976 | FR0328V | FP0606 | |
| 08.04~08.09 | 2700 | 2TR-FE | TRN215W | FR0551V | FP0976 | FR0328V | FP0606 | FT1098 |
| 10.02~08.04 | 2700 | 3RZ-FE | RZN210W | FR0551V | FP0976 | FR0328V | FP0606 | FT1098 |
| 08.05~08.09 | 4000 | 1GR-FE | GRN215W | FR0551V | FP0976 | FR0328V | FP0606 | FT1098 |
| 08.04~07.09 | 2700 | 2TR-FE | TRN210W | FR0551V | FP0976 | FR0328V | FP0606 | FT1098 |
| 11.02~08.05 | 3000 | 1KD-FTV | KDN215W | FR0551V | FP0976 | FR0328V | FP0606 | |
| 11.02~08.05 | 3400 | 5VZ-FE | VZN210W | FR0551V | FP0976 | FR0328V | FP0606 | FT1098 |
| 11.02~08.04 | 2700 | 3RZ-FE | RZN215W | FR0551V | FP0976 | FR0328V | FP0606 | FT1098 |
| 05.15~07.17 | 3000 | 1KD-FTV | KUN126L | FR0799VFR0551V | FP0976 | FT0022FT1081 | ||
| 11.15~ | 2700 | 2TR-FE | TGN126L | FR0799VFR0430VFR0551V | FP1567FP0976 | FT1081 | ||
| 01.21~ | 2700 | 2TR-FE | TGN127L | FR0430VFR0799VFR0551V | FP1567FP0976 | FT1081 | ||
| 07.16~ | 2700 | 2TR-FE | TGN128L | FR0430VFR0799VFR0551V | FP1567FP0976 | FT1081 | ||
| 05.15~ | 2700 | 2TR-FE | TGN136L | FR0551V | FP0976 | FT1081 | ||
| 05.15~ | 2400 | 2GD-FTV | GUN135R | FR0799VFR0551V | FP0976 | FT1081FT0022 | ||
| 05.15~ | 2400 | 2GD-FTV | GUN135L | FR0799VFR0551V | FP0976 | FT1081FT0022 |
