FiT » ROTOR DISC » FR1041 Feedback Information NEW!

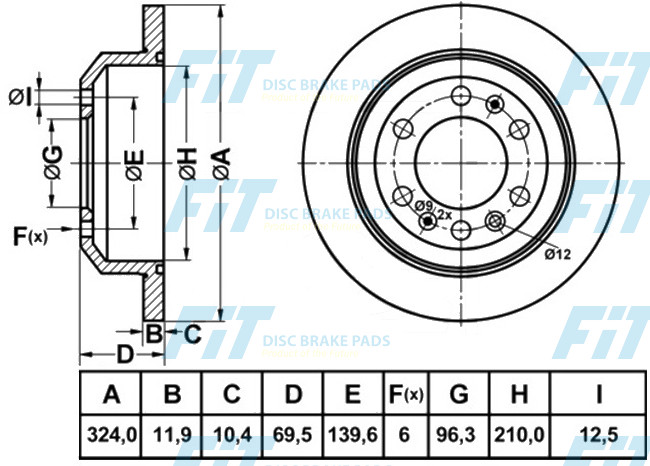

Image Of FR1041
Specification
Type Vented
Outter Ø 324
Num. of holes 6
Disc Thickness (Max) 12
Height 69.5
Centering Diameter 96.3
Pitch Circle Ø 139.6
Drum Ø: 210
Front/Rear Rear
Owner Number
ATE 24.0112-0185.1
Blue Print ADG043124
BOSCH 0 986 479 598
BREMBO 08.A633.10
CAR 142.1292
DBA DBA2892
Fri.tech. DF1118
HI-Q SD2047
INTERBRAKE KI071P
KIA 58411-4D000
LPR K2008P
Mando MBC030045
MINTEX MDC1823
NISSHINBO ND6071
NK 203525
NK 313525
REMSA 61027.00
SBS 1815203525
TRUSTING DF1118
TRW DF4925
Copyright © 2024
Years Eng Vol Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
KIA   »   Carnival / Sedona 06
11.06~01.14 2900 J3 WAGON LONG - 8P FR1042V FP0003 FR1041 FP1302
09.05~10.06 2900 J3 K4D005 FR1042V FP0003 FR1041 FP1302
01.06~01.14 3500 G6DC WAGON LONG - 8P FR1042V FP0003 FR1041 FP1302
11.06~10.14 2900 J3 WAGON LONG - 11P RHD FR1041 FP1302
01.10~11.14 2200 D4HB WAGON LONG - 11P FR1041 FP1302
