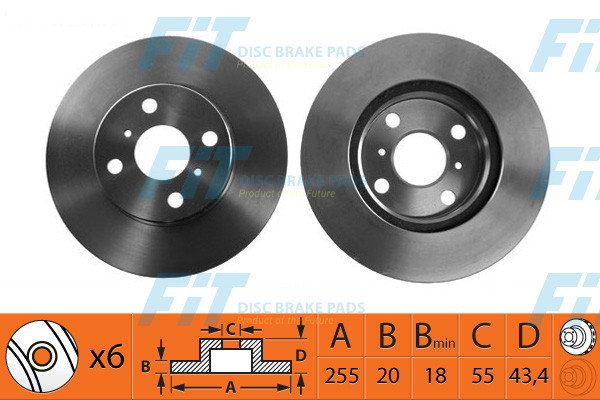

| Specification | |
|---|---|
| Type | Vented |
| Outter Ø | 255 |
| Num. of holes | 4 |
| Disc Thickness (Max) | 20 |
| Height | 43.4 |
| Centering Diameter | 55 |
| Pitch Circle Ø | 100 |
| Front/Rear | Front |
| Drum Ø: | 129 |
| Disc Thickness (Min) | 18 |
| Structure Material | G3000 |
| Owner | Number |
|---|---|
| AC Delco | AC2510D |
| AP | 24785 |
| ATE | 24.0120-0175.1 |
| ATE | 24.0320-0175.1 |
| BENDIX EUR | 562409B |
| Blue Print | ADT343137 |
| BOSCH | 0 986 478 969 |
| BOSCH | 0 986 479 012 |
| BRECO | BS 8412 |
| BREMBO | 09.8545.10 |
| BREMBO | FD.123.000 |
| BREMBO | FS.123.000 |
| CAR | 142.987 |
| CAR RACING | HPD 987 |
| CIFAM | 800-717 |
| DELPHI | BG3520 |
| DELPHI | BG3824 |
| DENCKERMANN | B130418 |
| Febi | 27942 |
| FERODO | DDF1149 |
| FERODO | DRF1149 |
| Fri.tech. | DF721 |
| GEELY | 1014001811 |
| GIRLING | 6041631 |
| GRAF | DF29717 |
| HI-Q | SD4678 |
| INTERBRAKE | TY921V |
| KWP | 129717 |
| LPR | T2880V |
| LUCAS | DF4163 |
| LYNXauto | BN-1156 |
| MAGNETI MARELLI | 353615202524 |
| Mando | MBC035295 |
| Metelli | 23-0717 |
| MILES | K000367 |
| MILES | K200367 |
| MINTEX | MDC1394 |
| NECTO | WN1168 |
| NISSHINBO | ND1079K |
| OEM | 435120D059 |
| OEM | 435120D50 |
| OEM | 4351217120 |
| OEM | 4351217131 |
| PAGID | 54156 |
| QH | BDC5194 |
| REMSA | 6635.10 |
| REMSA | 6877.20 |
| ROADHOUSE | 6635.10 |
| ROADHOUSE | 6877.20 |
| SBS | 1815204588 |
| SWAG | 81927942 |
| TEXTAR | 92115600 |
| TOKICO | TY133 |
| TOYOTA | 43512-0A030 |
| TOYOTA | 43512-0D020 |
| TOYOTA | 43512-52030 |
| TOYOTA | 43512-52040 |
| TOYOTA | 43512-52090 |
| TOYOTA | 435120D030 |
| TOYOTA | 435120D050 |
| TOYOTA | 4351217130 |
| TRUSTING | DF721 |
| TRW | DF4163 |
| TRW | DF7202 |
| VALEO | 186766 |
| WOKING | D6635.10 |
| ZEKKERT | BS-5318 |
| ZIMMERMANN | 590.2580.00 |
| Copyright © 2025 | |
| Years | Eng Vol | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 01.00~12.05 | 1500 | 1NZ-FE | NCP35 | FR0256V | FP0822 | FT1199 | ||
| 02.00~12.05 | 1300 | 2NZ-FE | NCP30 | FR0256V | FP0822 | FT1199 | ||
| 06.01~03.03 | 1500 | 1NZ-FE | NCP34 | FR0256V | FP0822 | FT1199 | ||
| 01.00~12.05 | 1500 | 1NZ-FE | NCP31 | FR0256V | FP0822FP1249 | FT1199 |
| 10.02~09.13 | 1500 | 1NZ-FE | NCP42R | FR0256V | FP0822 | FR0419 | FP0823 | FT0796 |
| 10.02~02.08 | 1500 | 5A-FE | AXP42 | FR0256V | FP0822 | FT1199 | ||
| 10.02~08.06 | 1300 | 8A-FE | AXP41 | FR0256V | FP0822 | FT1199 | ||
| 05.03~02.08 | 1300 | 2NZ-FE | NCP41 | FR0256V | FP0822 | FT1199 | ||
| 08.06~02.08 | 1300 | 2SZ-FE | SCP41 | FR0256V | FP0822 | FT1199 | ||
| 08.06~02.08 | 1500 | 3SZ-FE | SCP42 | FR0256V | FP0822 | FT1199 | ||
| 10.02~09.13 | 1500 | 1NZ-FE | NCP42L | FR0256V | FP0822 | FR0419 | FP0823 | FT0796 |
| 06.02~10.13 | 1500 | 1NZ-FE | NCP58G | FR0422VFR0256V | FP0831FP0822 | FT1203 | ||
| 06.02~10.13 | 1500 | 1NZ-FE | NCP59G | FR0422VFR0256V | FP0831FP0822 | FT1203 |
| 01.02~01.07 | 1300 | 2NZ-FE | NCP60 | FR0256V | FP0822 | FT1199 | ||
| 01.02~07.07 | 1500 | 1NZ-FE | NCP61 | FR0256V | FP0822 | FR0419 | FP0823 | |
| 04.02~05.05 | 1500 | 1NZ-FE | NCP65 | FR0256V | FP0822 | FT1199 |
| 08.99~09.05 | 1500 | 1NZ-FE | NCP25 | FR0256V | FP0822 | FT1199 | ||
| 08.99~10.05 | 1500 | 1NZ-FE | NCP21 | FR0256V | FP0822 | FT1199 | ||
| 08.99~09.05 | 1300 | 2NZ-FE | NCP20 | FR0256V | FP0822 | FT1199 |
| 08.99~12.05 | 1500 | 1NZ-FE | NCP21 | FR0256V | FP0822 | FR0419 | FP0823FT1199 | FT0796 |
| 08.99~09.05 | 1300 | 2NZ-FE | NCP20L | FR0256V | FP0822 | FR0419 | FP0823FT1199 | FT0796 |
| 10.01~09.05 | 1400 | 1ND-TV | NLP20 | FR0256V | FP0822 | FR0419 | FT1199FP0823 | FT0796 |
| 10.01~09.05 | 1400 | 1ND-TV | NLP22 | FR0256V | FP0822 | FR0419 | FT1199FP0823 | FT0796 |
| 03.00~09.05 | 1300 | 2NZ-FE | NCP22 | FR0256V | FP0822FP1249 | FR0419 | FT1199FP0823 | FT0796 |
| 09.99~01.05 | 1300 | 2NZ-FE | NCP10 | FR0256V | FP0822FP0831 | FR0419 | FP0823FT1201 | FT0796 |
| 10.00~11.10 | 1500 | 1NZ-FE | NCP13 | FR0256V | FP0822 | FR0419 | FP0823 | FT0796 |
| 08.99~12.02 | 1300 | 2NZ-FE | NCP10R | FR0240VFR0256V | FP0831FP0822 | FR0419 | FP0823FT1199 | |
| 08.99~12.02 | 1300 | 2NZ-FE | NCP10L | FR0240VFR0256V | FP0831FP0822 | FR0419 | FT1199FP0823 | |
| 01.99~01.05 | 1000 | 1SZ-FE | SCP10R | FR0240VFR0256V | FP0831FP0822FP0025 | FR0419 | FT1201FT1209FP0823 | FT0796 |
| 01.99~01.06 | 1000 | 1SZ-FE | SCP10L | FR0240VFR0256V | FP0822FP0831FP0025 | FR0419 | FP0823FT1199FT1209 | FT0796 |
| 05.02~11.05 | 1300 | 2SZ-FE | SCP12L | FR0240VFR0256V | FP0025FP0822 | FR0419 | FT1209FP0823 | FT0796 |
| 09.02~07.05 | 1300 | 2NZ-FE | NCP70 | FR0256V | FP0822 | FT1199 | ||
| 09.02~07.05 | 1500 | 1NZ-FE | NCP75 | FR0256V | FP0822 | FT1199 |
| 08.99~02.06 | 1500 | 1NZFE | NCP12L | FR0240VFR0256V | FP0831FP0822 | FT1201 | ||
| 06.03~08.05 | 1500 | 1NZ-FE | NCP13L | FR0256V | FP0822 | FT1201 |
