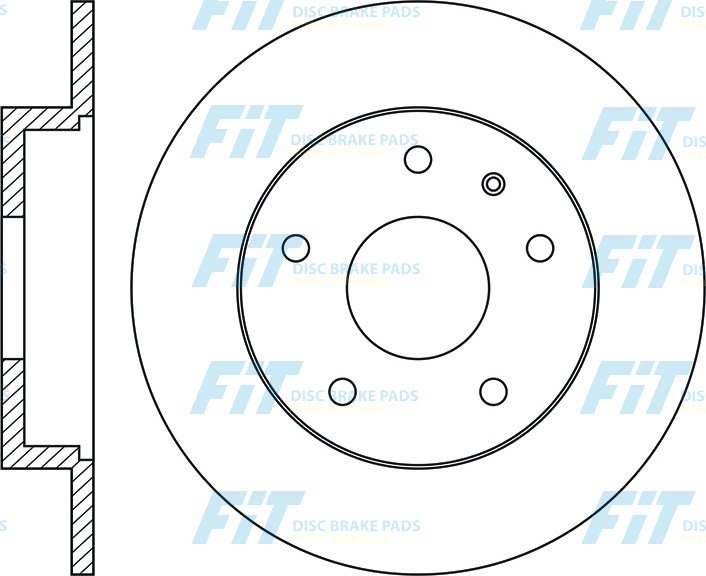

| Specification | |
|---|---|
| Type | Solid |
| Disc Thickness (Max) | 10 |
| Num. of holes | 5 |
| Height | 42.2 |
| Centering Diameter | 65.5 |
| Front/Rear | Rear |
| Pitch Circle Ø | 110 |
| Outter Ø | 264 |
| Drum Ø: | 145 |
| Owner | Number |
|---|---|
| AC Delco | AC2324D |
| AP | 15373 |
| ATE | 24.0110-0250.1 |
| ATE | 24.0118-0250.1 |
| ATE | 24.0310-0250.1 |
| ATE | 410250 |
| BENDIX | 562072B |
| BENDIX | 569109B |
| Blue Print | ADW194311 |
| BOSCH | 0 986 478 884 |
| BRADI | 1.3435.5.4 |
| BRECO | BS 7574 |
| BREMBO | 08.7627.10 |
| BREMBO | 08.7627.75 |
| CAR | 142.494 |
| CAR | 150.455 |
| CAR RACING | HPD 494 |
| CHEVROLET | 90575113 |
| CIFAM | 800-489 |
| DELPHI | BG3406 |
| Febi | 17213 |
| FERODO | DDF1044 |
| FERODO | DRF1044 |
| Fri.tech. | DF840 |
| GIRLING | 6040514 |
| GM | 9117772 |
| GM | 95526658 |
| GRAF | DF29489 |
| INTERBRAKE | OP431P |
| JURID | 562072J |
| JURID | 562072JC |
| JURID | 569109J |
| KWP | 129489 |
| Lemforder | 22839 |
| Lemforder | 22839 01 |
| LPR | O1431P |
| LUCAS | DF4051 |
| LUCAS | DF4051BP |
| LYNXauto | BN-1119 |
| MAGNETI MARELLI | 353613435540 |
| Metelli | 23-0489 |
| MINTEX | MDC1052 |
| NECTO | WN1065 |
| OEM | 4079000700 |
| OPEL | 05 69 109 |
| OPEL | 56 91 090 |
| OPEL | 569109 |
| PAGID | 52433 |
| PAGID | 59056 |
| PILENGA | 5765 |
| QH | BDC4816 |
| SBS | 1815203631 |
| STOP | 562072S |
| SWAG | 40917213 |
| TEXTAR | 92092100 |
| TEXTAR | 92092103 |
| TEXTAR | 93105600 |
| TEXTAR | 98200 0921 0 1 |
| TRUSTING | DF840 |
| TRW | DF4051 |
| VALEO | 186593 |
| VALEO | 186595 |
| VEMA | 98114 |
| ZEKKERT | BS-5246B |
| ZIMMERMANN | 430.1485.00 |
| ZIMMERMANN | 490.6654.00 |
| Copyright © 2025 | |
| Years | Eng Vol | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 03.04~10.10 | 1400 | Z14XE# | L48 | FR0223VFR0314V | FP1141FP1361 | FR0490 | FP1362 | |
| 03.04~10.10 | 1400 | Z14XE# | F48 | FR0223VFR0314V | FP1141FP1361 | FR0490 | FP1362 | |
| 09.04~03.14 | 2000 | Z20LER | L48 | FR0502VFR0314V | FP1361FP0972 | FR0490FR0929 | FP1362 | |
| 03.04~03.14 | 1800 | Z18XER | L48 | FR0314VFR0225V | FP1361FP0972 | FR0490FR0929 | FP1362 | |
| 03.04~12.14 | 1600 | Z16XER | A04 | FR0225V | FP1361FP1141 | FR0490 | FP1362 | |
| 03.04~12.14 | 1800 | Z18XER | A04 | FR0225V | FP1361FP1141 | FR0490 | FP1362 | |
| 03.04~12.13 | 1300 | Z13DTH | A04 | FR0225V | FP1361 | FR0490 | FP1362 | |
| 03.04~12.14 | 1600 | Z16XE1 | A04 | FR0225V | FP1361 | FR0490 | FP1362 | |
| 03.04~12.13 | 1800 | Z18XE | E35 | FR0225VFR0314V | FP0972 | FR0490FR0929 | FP1362FT4073 |
| 02.98~06.07 | 1600 | Z16XE | T98 | FR0223VFR0225V | FP1141 | FR0490 | FP4285FP1362 | |
| 08.02~10.05 | 2000 | Z20ZET | FR0502V | FP1361 | FR0490 | FP1362 | ||
| 09.02~07.04 | 1600 | Z16YNG | FR0223VFR0225V | FP1141 | FR0490 | FP1362 | ||
| 02.98~10.00 | 1800 | X18XE1 | F07 | FR0225V | FP1141 | FR0490 | FT4073 | |
| 10.00~12.05 | 1800 | Z18XE | F07 | FR0502VFR0225V | FP1141 | FR0490 | FT4073FP1362 | |
| 02.98~04.05 | 2000 | Y20DT# | F08 3DR HB EU | FR0225V | FP1141 | FR0490 | FP4285 |
| 07.05~11.14 | 1800 | Z18XER | A05 | FR0225V | FP1141 | FR0490 | FP1362 | |
| 07.05~11.14 | 1800 | A18XER | A05 | FR0225V | FP1361FP1141 | FR0490 | FP1362 | |
| 06.05~10.10 | 1900 | Z19DT | 0QS75 | FR0502V | FP1361 | FR0490 | FP1362 |
| 02.06~05.10 | 1600 | Z16XEP | E75 | FR0502VFR0225V | FP1361 | FR0490 | FP1362 | |
| 01.14~07.17 | 1400 | B14NEL | D75 LHD | FR0225V | FP1361FP1141 | FR0490 | FP1362 | |
| 01.10~07.17 | 1400 | A14XE# | S10 | FR0225V | FP1361 | FR0490 | FP1362 | |
| 11.09~01.14 | 1400 | B14NEL | D75 | FR0225V | FP1361 | FR0490 | FP1362 | |
| 01.14~06.17 | 1400 | B14NEL | D75 SG | FR0225V | FP1361FP1141 | FR0490 | FP1362 | |
| 06.10~07.17 | 1700 | A17DTC | 0ZD75 | FR0502V | FP1141 | FR0490 | FP1362 |
