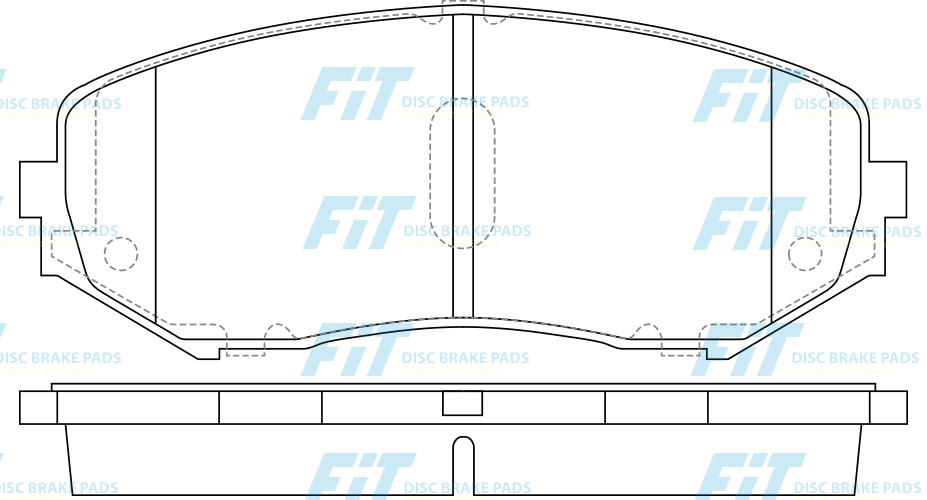

| Specification | |
|---|---|
| Length-1 | 138 |
| Width-1 | 54.7 |
| Thickness-1 | 17.1 |
| Pcs In Set | 4 |
| Owner | Number |
|---|---|
| AKEBONO | AN-723K |
| ASIMCO | KD3707 |
| BENDIX AUS | DB 1842 |
| Blue Print | ADK84234 |
| CTR | CKS-8 |
| CTR | GK0948 |
| DELPHI | LP2001 |
| FBL | AFP572 |
| Febi | 16648 |
| FENOX | BP43050 |
| FMSI | D1188-8307 |
| HITACHI | HF708 |
| HITACHI | NDP433 |
| ICER | 181747 |
| JFBK | HN-980J |
| KASHIYAMA | D9044 |
| KASHIYAMA | D904402 |
| KAVO PARTS | BP-8528 |
| LYNXauto | BD-7302 |
| MASUMA | MS-9900 |
| MINTEX | MDB2774 |
| Miyaco | MD375 |
| NISSHINBO | NP9003 |
| NISSHINBO | NP9003SC |
| PAGID | T1600 |
| REMSA | 1225.02 |
| SANGSIN | SP1416 |
| SUMITOMO | SN131 |
| SUZUKI | 52200-65J00 |
| SUZUKI | 55200-65J00 |
| SUZUKI | 55200-65J01 |
| SUZUKI | 55200-65J02 |
| SUZUKI | 55200-65J03 |
| SUZUKI | 55200-65J10 |
| SUZUKI | 55200-65J11 |
| SUZUKI | 55200-65J21 |
| SUZUKI | 55200-65J22 |
| SUZUKI | 55200-65J23 |
| SUZUKI | 55200-65J24 |
| SUZUKI | 55200-65J25 |
| SUZUKI | 55200-65J26 |
| SUZUKI | 55200-65J30 |
| SUZUKI | 55200-65J31 |
| SUZUKI | 55200-67D11 |
| TEXTAR | 2434601 |
| TRW | GDB3443 |
| TRW | GDB7720 |
| WVA | 24346 |
| ZEKKERT | BS-2620 |
| Copyright © 2025 | |
| Years | Eng Vol | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 06.06~04.07 | 1600 | M16A | TA74W | FR0481V | FP1188 | FT9339 | ||
| 06.08~05.09 | 3200 | N32A | TDB4W | FP1188 | FP0905 | |||
| 05.05~ | 2700 | H27A | TD84W | FP1188 | FP0905 | |||
| 05.05~06.08 | 2000 | J20A | TD54W | FR0481V | FP1188 | FT9339 | ||
| 05.05~06.08 | 2700 | H27A | TD94W | FP1188 | FT9339 | |||
| 06.08~04.17 | 2400 | J24B | TDA4W | FR0481V | FP1188 | FR0628V | FP0905 | FT2971 |
| 01.06~01.14 | 2000 | J20A | JTE54V | FR0481V | FP1188 | FT9339 | ||
| 06.05~07.16 | 2000 | J20A | JTD54V | FR0481V | FP1188 | FT9339 | ||
| 01.06~07.16 | 2400 | J24B | JB424W RHD | FR0481V | FP1188 | FR0628V | FP0905 | FT2971 |
| 06.01~09.08 | 2700 | H27A | JTD94V | FR0481V | FP1188 | FT9339 | ||
| 01.05~12.15 | 2000 | J20A | TD54V | FR0481V | FP1188 | FT9339 | ||
| 04.05~08.12 | 1600 | M16A | JB416X-1/2 | FR0481V | FP1188 | FT9339 | ||
| 08.08~07.12 | 2000 | J20A | JB420W-5 | FR0481V | FP1188 | FR0628V | FP0905 | FT2971 |
| 01.09~08.16 | 2400 | J24B | JB424X-6 | FR0481V | FP1188 | FR0628V | FP0905 | FT2971 |
| 09.05~08.08 | 2000 | J20A | JB420W-2 | FR0481V | FP1188 | FT9339 | ||
| 08.08~01.10 | 2400 | J24B | JB424W-4 LHD | FR0481V | FP1188 | FR0628V | FP0905 | FT2971 |
| 08.08~08.12 | 3200 | N32A | TDB4V RHD | FR0481V | FP1188 | FR0628V | FP0905 | FT2971 |
| 03.14~08.16 | 2400 | J24B | JB424W-8 LHD | FR0481V | FP1188 | FR0628V | FP0905 | FT2971 |
| 04.05~08.08 | 1900 | F9Q# | TD44 | FR0481V | FP1188 | FR0628V | FP0905 | FT2971 |
| 08.12~07.16 | 1600 | M16A | JB416X-7 | FR0481V | FP1188 | FT9339 | ||
| 07.12~07.19 | 2000 | J20A | JB420W-8 | FR0481V | FP1188 | FR0628V | FP0905 | FT2971 |
| 01.10~08.12 | 2400 | J24B | JB424W-5 LHD | FR0481V | FP1188 | FR0628V | FP0905 | FT2971 |
| 08.08~08.12 | 1600 | M16A | JB416X-4/5 | FR0481V | FP1188 | FT9339 | ||
| 03.08~08.12 | 3200 | N32A | TD1D LHD | FR0481V | FP1188 | FR0628V | FP0905 | FT2971 |
| 03.14~08.16 | 2400 | J24B | JB424W-8 LHD 3DR | FR0481V | FP1188 | FR0628V | FP0905 | FT2971 |
| 08.08~07.19 | 2000 | J20A | GR NOMADE | FR0481V | FP1188 | FR0628V | FP0905 | FT2971 |
| 01.10~07.19 | 2400 | J24B | GR NOMADE | FR0481V | FP1188 | FR0628V | FP0905 | FT2971 |
| 08.12~03.14 | 2400 | J24B | JB424W-7 LHD | FR0481V | FP1188 | FR0628V | FP0905 | FT2971 |
| 09.05~01.09 | 2700 | H27A | TE94 | FR0481V | FP1188 | FT9339 | ||
| 01.08~08.12 | 2400 | J24B | JB424W | FR0481V | FP1188 | FR0628V | FP0905 | FT2971 |
