FiT » ROTOR DISC » FR0717V Feedback Information NEW!

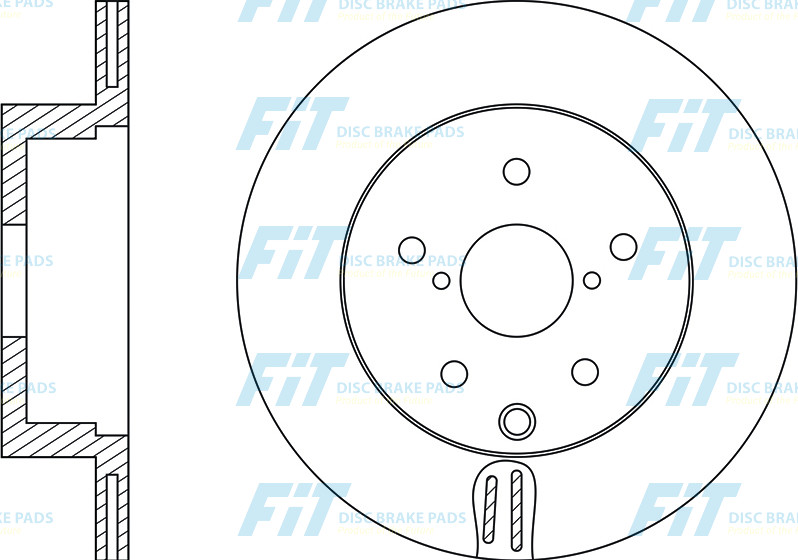

Image Of FR0717V
Specification
Type Vented
Disc Thickness (Max) 18
Num. of holes 5
Height 70
Centering Diameter 62
Front/Rear Rear
Pitch Circle Ø 114.3
Outter Ø 309
Disc Thickness (Min) 16.5
Drum Ø: 210
Structure Material G3000
Owner Number
ATE 24011801571
Blue Print ADT343225
BOSCH 0 986 479 T57
LEXUS 42431-48080
TOYOTA 42431-48080
Copyright © 2024
Years Eng Vol Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
LEXUS   »   RX350
12.08~10.15 3500 2GR-FE GGL15 FR0549V FP1324 FR0578FR0717V FP1391
LEXUS   »   RX450H
03.09~10.15 3500 2GR-FXE GYL15 FR0549VFR0682V FP1324 FR0578FR0717V FP1391
