FiT » ROTOR DISC » FR1069V Feedback Information NEW!

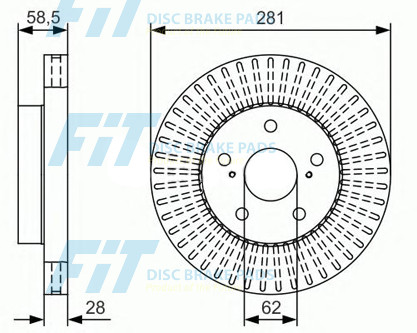

Image Of FR1069V
Specification
Type Vented
Outter Ø 281
Num. of holes 5
Disc Thickness (Max) 28
Height 58.5
Centering Diameter 62
Pitch Circle Ø 114.3
Drum Ø: 152
Front/Rear Front
Hole Ø: 14.6
Disc Thickness (Min) 26
Structure Material G3000
Owner Number
Blue Print ADT343226
BOSCH 0 986 AB6 151
BREMBO 09.C066.10
DJ PARTS BD1567
FREMAX BD6155
MINTEX MDC2826C
SANGSIN SD4692
TEXTAR 92263203
TOYOTA 43512-0K041
TOYOTA 43512-0K130
TRADEX TBD1113
TRW DF7460
Copyright © 2025
Years Eng Vol Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
TOYOTA   »   Innova
07.11~10.15 2700 2TR-FE TGN41L FR1069V FP1076 FT1196
07.11~10.15 2700 2TR-FE TGN41R FR1069V
08.04~03.16 2500 2KD-FTV KUN40R FR0450VFR1069V FP1076 FT1196
TOYOTA   »   Hilux
08.04~07.11 3000 5L-E LAN15L FR0450VFR1069V FP1076 FT1196
08.04~09.08 2500 2KD-FTV KUN15R FR0450VFR1069V FP1073FP1076 FT1196
02.05~12.15 2000 1TR-FE TGN15R FR1069V FP1076 FT1196
