FiT » BRAKE SHOE » FT3319 Feedback Information NEW!

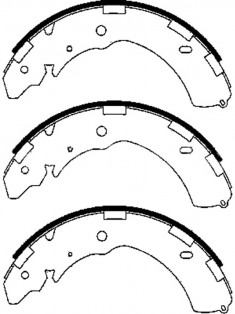

Image Of FT3319
Specification
Radius 147.5
Width 50
Thickness 3.2 / 6.7
Pcs In Set 4
Owner Number
A.B.S. 9270
ATE 03013705182
BENDIX AUS BS5018
Blue Print ADC44143
BOSCH 0986487758
BREMBO S54523
DANAHER DBS10118
DELPHI LS2064
DENCKERMANN B120175
FBK FN6741
FENOX BP53137
FERODO FSB4052
FIAT 6000609727
GM 94726878
GM 97947766
GM 97947767
GM 97947768
GM 97947802
ISUZU 5-87832-257-0
ISUZU 8-97662-756-0
ISUZU 8-97834-826-0
ISUZU 8-97835-448-0
ISUZU 8-97947-384-0
ISUZU 8-97947-386-0
ISUZU 8-97947-387-0
ISUZU 8-97947-734-0
ISUZU 8-97947-735-0
ISUZU 8-97947-736-0
ISUZU 8-97947-766-0
ISUZU 8-97947-767-0
ISUZU 8-97947-768-0
ISUZU 8-97947-802-0
ISUZU 8-98346-171-0
JAPANPARTS GF-510AF
JAPANPARTS GF510JM
KASHIYAMA K4473
KASHIYAMA K6741
LYNXauto BS-5508
MILES E210592
MINTEX MFR653
MITSUBISHI 4600A018
MITSUBISHI 4600A106
MITSUBISHI 4600A122
STELLOX 000 109-SX
TEXTAR 91073000
TRADEX TBP1301
TRIALLI GF 1105
TRW GS7846
TRW GS7887
TRW GS8768
ZEKKERT BK-4034
Copyright © 2024
Years Eng Vol Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
MITSUBISHI   »   L200
01.05~04.11 2500 4D56 KB4T FR0358V FP1519 FT3319
01.05~04.15 2500 4D56 KB4T FR0358V FP1519 FT3319
04.10~ 2500 4D56 KB4T FR0358V FP1519 FT3319
07.15~05.19 2400 4N15 KL1T FR0358VFR1326V FP1519FP1258 FT3319
05.05~03.15 2500 4D56 K_4T FR0358V FP1519 FT3319
01.15~ 2400 4N15 KL2T FR0358V FP1519 FT3319
05.98~08.03 2800 4M40 K57T FR0358V FP1519 FT3319
05.07~03.14 3200 4M41 KB8T FR0358V FP1519 FT3319
05.05~08.07 2800 4M40 KB7T FR0358V FP1519 FT3319
05.05~03.15 3500 6G74 KB9T FR0358V FP1519 FT3319
06.06~03.15 2400 4G64 KA5T FR0358V FP1519 FT3311FT3319
01.15~05.19 2500 4D56 KL3T FR0358V FP1519 FT3319
05.05~04.15 3500 6G74 KA9T FP1519 FT3319
12.05~08.06 2400 4G64 KB5T FR0358V FP1519 FT3319
06.19~ 2400 4N15 KL1T FR0358VFR1326V FP1519FP1258 FT3319
06.19~ 2200 4N14 KL6T FR0358VFR1326V FP1519FP1258 FT3319
06.19~ 2200 4N14 KK6T FR0358V FP1519 FT3319
MITSUBISHI   »   Triton
09.06~09.11 3500 6G74 KB7T FR0358V FP1519 FT3319
03.06~09.11 3500 6G74 KB9T FP1519 FT3319
03.06~01.15 3500 6G74 KB9T FR0358V FP1519 FT3319
03.06~ 3200 4M41 KB8T FR0358V FP1519 FT3319
01.15~ 2400 4N15 KK1T FR0358V FP1519 FT3319
01.15~ 2500 4D56 KL3T FP1519 FT3319
01.15~ 2400 4N15 KK2T FR0358V FP1519 FT3319
01.15~ 2500 4D56 KK3T FR0358V FP1519 FT3319
05.05~12.14 2500 4D56 KB4T FR0358V FP1519 FT3319
01.15~ 2400 4G64 KL4T FR0358V FP1519 FT3319
01.15~ 2500 4N15 KL1T FR0358VFR1326V FP1519FP1258 FT3319
01.15~ 2400 4G64 KK4T FR0358V FP1519 FT3319
05.15~05.19 2500 4D56 KP3T FR0358V FP1519 FT3319
MITSUBISHI   »   Pajero / Montero
07.08~01.14 3200 4M41 KH8W FR0358V FP1519 FT3319
MITSUBISHI   »   Nativa
01.08~ 2500 4D56 KG4W FR0358V FP1519 FT3319
07.08~ 2500 4D56 KH4W FR0358V FP1519 FR0769V FT3319FP0733
MITSUBISHI   »   Pajero Sport
07.08~09.15 3500 6G74 KH9W FR0358V FP1519 FR0769V FT3319FP0733 FT3054
10.15~ 2500 4D56 KS3W FR0358V FP1519 FR1327V FT3319FP0733
MITSUBISHI   »   Pajero / Montero Sport
10.15~ 2500 4D56 KR3W FR0358V FP1519 FR1327V FP0733FT3319
07.08~01.14 3000 6B31 KH6W FR0358V FP1519 FR0769V FT3319FP0733 FT3054
ISUZU   »   D-Max
10.06~01.12 2500 4JA1-T TFR85 FP1677 FT3319
01.13~12.16 3000 4JJ1-T TFS85JDR FR0770V FP1677 FT3319
01.16~10.19 2500 4JK1-TCX TFS86 FR0770V FP1677 FT3319
09.15~ 2500 4JK1-TCX TF_86 FR0770V FP1677 FT3319
03.12~ 2500 4JK1-TCY TFS86 EU RHD FR0770V FP1677 FT3319
06.12~ 3000 4JJ1-TCX TFR85 FR0770V FP1677 FT3319
01.16~ 1900 RZ4E-TC TF_87 FT3319
02.17~ 1900 RZ4E-TCX TFR87 FR0438V FP1677 FT3319
07.20~ 3000 4JJ3-TCX TFS40 RHD FT3319
01.17~ 3000 4JJ1-TCX TFS85JDL FR0770V FP1677 FT3319
01.16~10.19 2500 4JK1-TCX TGS86 INDIA FT3319
03.12~ 2500 4JK1-TCY TFS86 ML RHD FR0770V FP1677 FT3319
03.12~01.16 2500 4JK1-TCX TFS86 LA RHD FR0770V FP1677 FT3319
10.16~ 2500 4JK1-TCX TFR86 RHD FR0770V FP1677 FT3319
01.17~ 2500 4JK1-TCX TFS86 LHD FR0770V FP1677 FT3319
10.18~ 2500 4JK1-TCX TFS86 LHD FR0770V FP1677 FT3319
06.12~05.17 3000 4JJ1-TCS TFS85J LHD FR0770V FP1677 FT3319
11.19~ 2500 4JK1-TCS TFR86 INDIA LHD FR0438V FP1677 FT3319
02.17~ 1900 RZ4E-TCX TFS87 FT3319
09.19~ 1900 RZ4E-TC TFS87 ML RHD FT3319
01.16~ 3000 4JJ1-TCX TFS6WF FR0770V FP1677 FT3319
ISUZU   »   Pickup TFR
01.13~01.14 3000 4JJ1 MIDDLE EAST FR0770V FP1677 FT3319
10.18~ 2500 4JK1-TCX TFS86 FR0770V FP1677 FT3319
ISUZU   »   MU-X
01.14~01.17 2500 4JK1-TCX UCS86 FR0770V FP1677 FT3319
11.17~ 1900 RZ4E-TC UCR FR0770V FP1677 FT3319
CHEVROLET (GM)   »   Colorado
01.09~01.16 2800 LWH LT# FR0770V FP1677 FT3319
01.12~12.14 2500 LVN S10 FR0438V FP1677 FT3319
01.17~01.21 2800 LWN LT# FP1736 FT3319
01.12~01.17 2800 LWN LT# FR0770V FP1677 FT3319
01.14~01.17 2500 LKH LT# FR0770VFR0438V FP1677 FT3319
01.12~01.17 3600 LY7 LT# FR0770VFR0438V FP1677 FT3319
01.17~ 2500 LP2 LT# FP1736 FT3319
01.17~ 2500 LKH 12L43 RHD FP1736 FT3319
01.17~ 2500 LKH 12L43 LHD FP1736 FT3319
CHEVROLET (GM)   »   D-Max
06.12~ 2500 4JK1-TCY TFR86 FR0770V FP1677 FT3319
06.12~ 2500 4JK1-TCY TFS86 FR0770V FP1677 FT3319
FIAT   »   Fullback
03.15~12.19 2500 UAL3217 503J85101510 FR0358V FP1519 FT3319
04.16~12.19 2500 4D56 5034B5101000 FR0358V FP1519 FT3319
HOLDEN   »   Colorado RG
06.12~12.13 2500 LVN RG FR0770V FP1677 FT3319
11.12~12.20 2800 LWN RG FR0770V FP1677FP1736 FT3319
MAZDA   »   BT-50
06.20~ 3000 4JJ3-TCX MP2TFS40 FT3319
06.20~ 1900 RZ4E-TCX MP2TFR87 FR0438V FP1677 FT3319
06.20~ 1900 RZ4E-TCX MP2TFS87 FT3319
