FiT » ROTOR DISC » FR1009V Feedback Information NEW!

Image Of FR1009V

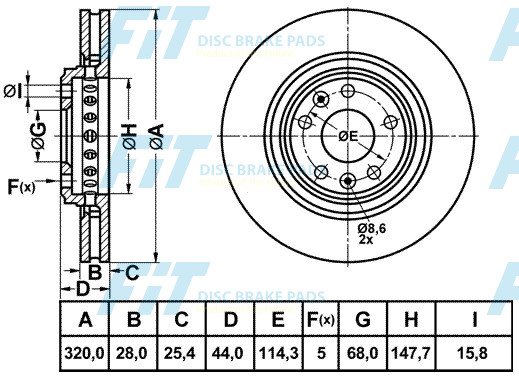

Specification
Type Vented
Outter Ø 320
Num. of holes 5
Disc Thickness (Max) 28
Height 44
Centering Diameter 68
Pitch Circle Ø 114.3
Owner Number
A.B.S. 17978
ATE 24.0128-0245.1
Blue Print ADR164308
BOSCH 0 986 479 552
BREMBO 09.B352.11
CAR 142.1494
DELPHI BG4266
DELPHI BG5288C
FERODO DDF1727
Fri.tech. DF1360
INTERBRAKE RN881V
MINTEX MDC2194
MINTEX MDC3219C
NK 203969
PILENGA V797
RENAULT 40 20 600 03R
RENAULT 40 20 600 29R
RENAULT 40 20 641 55R
RENAULT 40 20 656 46R
SBS 1815203969
TEXTAR 92195403
TEXTAR 92351703
TRUSTING DF1360
TRW DF 6208S
ZIMMERMANN 470.2438.20
Copyright © 2025
Years Eng Vol Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
RENAULT   »   Espace V
03.15~ 1600 M5M 450 JRME FR1009V FP1737 FR1311H
03.15~ 1600 R9M JRA5 FR1009V FP1737 FR1311H
10.18~ 2000 M9R650 JR FR1009V FP1737 FR1311H
10.16~ 1800 M5P JRA5 FR1009V FP1737 FR1311H
RENAULT   »   Laguna III
03.08~07.15 3500 V4Y 713 DT0C FR1009V FP3354 FP0973
03.08~07.15 3000 V9X LB/COUPE/ESTATE FR1009V FP3354 FR0740H FP0973
11.08~02.12 2000 M9R 802 DT01 FR1009V FP3354 FP0973
01.11~07.15 2000 M9R857 KT19 EST EU LH FR1009V FP3354 FR0740H FP0973
RENAULT   »   Latitude
08.10~08.15 3500 5ZV604 L43 FR1009V FP3354 FR0740H FP3356
RENAULT   »   Clio IV
11.12~03.19 1600 M5M 400 BHMM FR1009V FP3354 FR0738H FP3260E
09.12~08.16 1600 M5M 401 BHJ4 RS FR1009V FP3354 FR0738H FP3260E
RENAULT   »   Grand Scenic IV
09.16~ 1500 K9K 649 R9A3 FR1009V FP1737
09.16~ 1300 H5H450 R9A3 FR1009V
09.16~ 1200 H5F R9 FR1009V FP1737 FP3260E
09.16~ 1600 R9M R9 FR1009V FP1737
09.16~ 1500 K9K 647 R9A3 FR1009V FP1737
RENAULT   »   Talisman
08.15~ 1500 K9K FR1009V FP1737FP3354 FR0740H FP3356
09.18~ 1800 M5P FR1009V FP3354FP1737 FR0740H FP3356
RENAULT   »   Scenic IV
09.16~ 1500 K9K649 J9 FR1009V FP1737 FP3260E
09.16~ 1200 H5F J9 FR1009V FP1737 FP3260E
09.16~ 1600 R9M J9 FR1009V FP1737
RENAULT   »   Scenic III
01.09~01.12 2000 M9R 615 JZ0Y FR1009V FP3354 FP3353FP3260E
RENAULT   »   Austral
08.22~ 1200 H5F 601 HGM2 FR1009V
