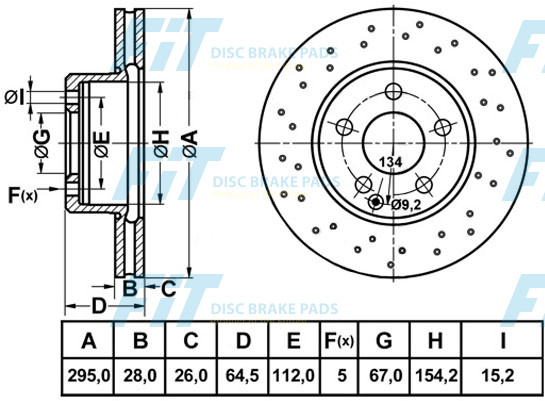

| Specification | |
|---|---|
| Type 1: | Direction Vented |
| Outter Ø | 295 |
| Num. of holes | 5 |
| Disc Thickness (Max) | 28 |
| Height | 64.5 |
| Centering Diameter | 67 |
| Pitch Circle Ø | 112 |
| Drum Ø: | 154.2 |
| Front/Rear | Front |
| Couple With | |
|---|---|
| FiT | FR0568V |
| Owner | Number |
|---|---|
| ATE | 24.0128-0100.1 |
| ATE | 24.0128-0155.1 |
| Blue Print | ADU174306 |
| Blue Print | ADU174312 |
| BREMBO | 09.A613.40 |
| BREMBO | 09.A613.41 |
| BREMBO | 09.A613.51 |
| BREMBO | 09.B280.41 |
| CAR | 142.1368 |
| CAR | 142.1373 |
| CIFAM | 800-935 |
| CIFAM | 800-935C |
| DELPHI | BG4142 |
| FERODO | DDF1690 |
| FERODO | DDF1693 |
| Fri.tech. | DF1234 |
| Fri.tech. | DF1243 |
| INTERBRAKE | MD361V |
| INTERBRAKE | MD401V |
| Lemforder | 31906 01 |
| Lemforder | 31908 01 |
| LPR | M2056V |
| LUCAS | DF4863S |
| LYNXauto | BN-1084 |
| MERCEDES-BENZ | 212 421 13 12 |
| MERCEDES-BENZ | A 204 421 07 12 |
| MERCEDES-BENZ | A 204 421 09 12 |
| MERCEDES-BENZ | A 204 421 25 12 |
| MERCEDES-BENZ | A 204 421 27 12 |
| MERCEDES-BENZ | A 204 421 28 12 |
| MERCEDES-BENZ | A 204 421 36 12 |
| MERCEDES-BENZ | A 212 421 13 12 |
| Metelli | 23-0935 |
| Metelli | 23-0935C |
| MINTEX | MDC2014 |
| NK | 2033100 |
| OEM | 2044210712 |
| PAGID | 54632PRO |
| PILENGA | V934 |
| SBS | 18152033100 |
| TEXTAR | 92165003 |
| TEXTAR | 92165005 |
| TRUSTING | DF1234 |
| TRUSTING | DF1243 |
| TRW | DF4813S |
| TRW | DF4863S |
| ZIMMERMANN | 400.3653.20 |
| ZIMMERMANN | 400.3665.20 |
| Copyright © 2024 | |
| Years | Eng Vol | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 07.09~01.14 | 3000 | M 272.947 | W204 | FR0568VFR0569DSETFR1181DSET | FP1342EFP1340E | FR0840 | FP1341E |
| 01.07~12.09 | 1800 | M 271.952 | W204 | FR0725VFR1181DSETFR0568V | FP1340E | FR0726FR0840 | FP1341E | |
| 11.09~01.14 | 1800 | M 271.820 | W204 | FR0725VFR1181DSET | FP1340E | FR0726 | FP1341E | |
| 04.10~01.14 | 2200 | OM 651.913 | W204 | FR0725VFR1181DSET | FP1340E | FR0726FR0840 | FP1341E | |
| 08.07~08.14 | 1800 | M 271.952 | S204 | FR0725VFR1181DSET | FP1340E | FR0726FR0840 | FP1341E | |
| 06.12~01.14 | 1600 | M 274.910 | W204 | FR0725VFR1181DSET | FP1340E | FR0726FR0840 | FP1341E |
| 03.07~02.11 | 2200 | OM 646.811 | W204 | FR0568VFR1181DSET | FP1340E | FR0840 | FP1341E | |
| 08.07~03.09 | 2200 | OM 646.811 | S204 | FR0568VFR1181DSET | FP1340E | FR0840 | FP1341E | |
| 12.08~08.14 | 2200 | OM 651.911 | S204 | FR0568VFR1181DSET | FP1340E | FR0840 | FP1341E | |
| 11.08~01.14 | 2200 | OM 651.911 | W204 | FR1181DSETFR0568V | FP1340E | FR0840 | FP1341E |
| 08.07~10.09 | 2500 | M 272.921 | W204 | FR0568VFR1181DSET | FP1340E | FR0840 | FP1341E | |
| 08.07~12.12 | 2500 | M 272.921 | S204 | FR0568VFR1181DSET | FP1340E | FR0840 | FP1341E |
| 01.07~07.09 | 3000 | M 272.947 | W204 | FR0568VFR0569DSET | FP1340EFP1342E | FR0840 | FP1341E | |
| 08.07~08.14 | 3000 | M 272.947 | S204 | FR0568VFR0569V | FP1340EFP1342E | FR0840 | FP1341E | |
| 07.07~01.14 | 3000 | M 272.948 | W204 | FR0569DSETFR0568VFR1181DSET | FP1342EFP1340E | FR0840 | FP1341E |
| 01.09~12.15 | 2000 | OM 651.925 | W212 | FR0568V | FP1342EFP1340E | FR0382 | FP1238E | FT0969 |
| 08.09~01.13 | 1800 | M 271.820 | W212 | FR0568VFR0569V | FP1340EFP1342E | FR0382 | FP1238E | |
| 03.11~01.13 | 1800 | M 271.958 | W212 | FR0568VFR0569DSET | FP1342EFP1340E | FR0382 | FP1238E | |
| 11.09~12.16 | 2100 | OM 651.925 | S212 | FR0568VFR0569DSET | FP1340EFP1342E | FR0382 | FP1238E | FT0969 |
| 09.09~12.13 | 1800 | M 271.860 | S212 | FR0568VFR0569DSET | FP1340EFP1342E | FR0382 | FP1238E | FT0969 |
| 04.09~05.13 | 1800 | M 271.860 | 212.048 | FR0568VFR0569DSET | FP1340EFP1342E | FR0382 | FP1238E | FT0969 |
| 01.13~12.15 | 2000 | M 274.920 | 212.034 | FR0568VFR0569DSET | FP1340EFP1342E | FR0382 | FP1238E | FT0969 |
| 01.10~12.16 | 1800 | M 271.820 | 207.348 | FR0569VFR0568V | FP1340EFP1342E | FR0840 | FP1341E | |
| 04.13~12.16 | 2000 | M 274.920 | C207 | FR0569VFR0568V | FP1342EFP1340E | FR0840 | FP1341E | |
| 01.10~12.16 | 1800 | M 271.860 | C207 | FR0568VFR0569V | FP1340EFP1342E | FR0840 | FP1341E | |
| 03.13~12.16 | 2000 | M 274.920 | A207 | FR0569VFR0568V | FP1342EFP1340E | FR0840 | FP1341E |
| 07.09~01.14 | 1800 | M 271.860 | W204 | FR0568VFR1181DSET | FP1340E | FR0840 | FP1341E | |
| 08.08~01.14 | 2200 | OM 651.911 | W204 | FR0568VFR1181DSET | FP1340E | FR1182V | FP1341E | |
| 02.08~12.12 | 2500 | M 272.921 | W204 | FR0568VFR1181DSET | FP1340E | FR0840 | FP1341E | |
| 07.09~08.14 | 1800 | M 271.860 | S204 | FR0568VFR1181DSET | FP1340E | FR0840 | FP1341E | |
| 06.11~06.15 | 1800 | M 271.860 | C204 | FR0568V | FP1340E | FR0840 | FP1341E |
| 03.07~ | 1800 | M 271.950 | C204 | FR0568VFR1181DSET | FP1340E | FR0840 | FP1341E | |
| 08.07~08.14 | 1800 | M 271.950 | S204 | FR0568VFR1181DSET | FP1340E | FR0840 | FP1341E | |
| 07.07~03.11 | 1800 | M 271.860 | W204 | FR0568VFR1181DSET | FP1340E | FR0840 | FP1341E | |
| 03.11~01.15 | 1800 | M 271.860 | W204 (RES) | FR1181DSETFR0568V | FP1340E | FR0840 | FP1341E | |
| 03.10~08.14 | 1800 | M 271.860 | S204 (RES) | FR0568VFR1181DSET | FP1340E | FR0840 | FP1341E |
| 11.09~12.16 | 2100 | OM 651.924 | S212 | FR0569DSETFR0568VFR0569V | FP1342EFP1340E | FR0382 | FP1238E | FT0969 |
| 01.09~12.16 | 2200 | OM 651.924 | W212 | FR0568VFR0569V | FP1342EFP1340E | FR0382 | FP1238E | FT0969 |
| 01.09~05.16 | 1800 | M 271.860 | C207 | FR0568VFR0569V | FP1340EFP1342E | FR0840 | FP1341E | |
| 01.10~05.16 | 1800 | M 271.860 | A207 | FR0568VFR0569V | FP1340EFP1342E | FR0840 | FP1341E |
| 03.07~12.09 | 1800 | M 271.950 | W204 | FR0568V | FP1340E | FR0840 | FP1341E | |
| 08.07~08.14 | 1800 | M 271.950 | S204 | FR0568V | FP1340E | FR0840 | FP1341E |
| 01.08~06.11 | 1600 | M 271.910 | W204 | FR0725VFR1181DSET | FP1340E | FR0726FR0840 | FP1341E | |
| 01.07~12.09 | 1800 | M 271.952 | W204 | FR0725VFR1181DSET | FP1340E | FR0726FR0840 | FP1341E |
