FiT » ROTOR DISC » FR1074 Feedback Information NEW!

Image Of FR1074

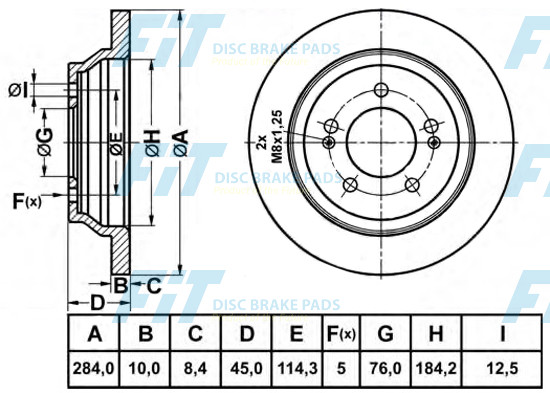

Specification
Type Solid
Outter Ø 284
Num. of holes 5
Disc Thickness (Max) 10
Height 45
Centering Diameter 76
Pitch Circle Ø 114.3
Drum Ø: 184.2
Front/Rear Rear
Disc Thickness (Min) 8.4
Structure Material G3000
Owner Number
ATE 24.0110-0392.1
Blue Print ADG043210
BREMBO 08C82321
HYUNDAI / KIA 58411-B2500
KIA 58411-A4000
REMSA 61572.00
TRW DF8150S
Copyright © 2024
Years Eng Vol Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
KIA   »   Rondo
01.13~12.17 1700 D4FD HU81 FR0458V FP2023 FR1074 FP1313
KIA   »   Carens 16
08.16~07.18 1700 D4FD WAGON - 5DR 7P FR0458V FP1543 FR1074 FP1313
KIA   »   Carens 12
12.12~08.16 1700 D4FD WAGON - 5DR 7P FR0458V FP2023 FR1074 FP1313
01.13~09.16 2000 G4NC HU FR0458V FP2023 FR1074 FP1313
01.13~09.16 1600 G4FD HU81 RHD FR0458V FP2023 FR1074 FP1313
01.13~09.16 2000 G4ND RPA412 FR0458V FP2023 FR1074 FP1313
01.13~09.16 2000 L4NA DOMPA412 FR0458V FP2023 FR1074 FP1313
01.13~ 2000 G4NA MPV LHD FR0458V FP2023FP1543 FR1074 FP1313
KIA   »   Seltos
06.19~ 1600 G4FJ PTH19 FR0788V FP1855 FR1074
HYUNDAI   »   Kona / Kauai
07.17~09.20 1600 G4FJ PJ918 FR0788V FP1855 FR1074 FP1157
HYUNDAI   »   Kona
06.17~ 1600 D4FB PJ918 LHD FR0654V FP0001 FR1074 FP1157
