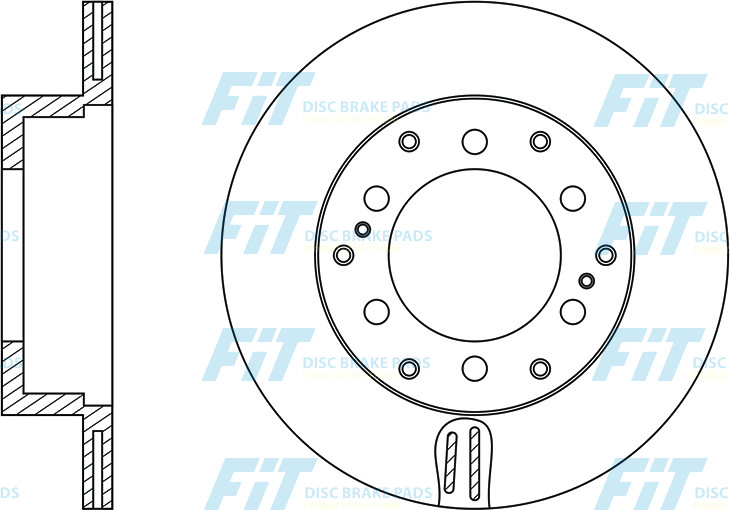

| Specification | |
|---|---|
| Type | Vented |
| Outter Ø | 312 |
| Num. of holes | 6 |
| Disc Thickness (Max) | 18 |
| Height | 68 |
| Centering Diameter | 106 |
| Pitch Circle Ø | 139.7 |
| Front/Rear | Rear |
| Drum Ø: | 209 |
| Owner | Number |
|---|---|
| Ashika | 6102209C |
| ATE | 24.0118-0709.1 |
| Blue Print | ADT343129 |
| BREMBO | 09.A334.10 |
| CAR | 142.1282 |
| CIFAM | 800-972 |
| DELPHI | BG3557 |
| DENCKERMANN | B130616 |
| Febi | 108393 |
| FERODO | DDF1743 |
| Fri.tech. | DF521 |
| GIRLING | 6044842 |
| HI-Q | SD4039 |
| INTERBRAKE | TT271V |
| LEXUS | 42431-60270 |
| LPR | T2000V |
| LUCAS | DF4484 |
| LYNXauto | BN-1183 |
| Mando | MBC035447 |
| Metelli | 23-0972 |
| MINTEX | MDC1406 |
| NISSHINBO | ND1043K |
| QH | BDC5197 |
| REMSA | 6956.10 |
| ROADHOUSE | 6956.10 |
| SBS | 1815204575 |
| SWAG | 33 10 7138 |
| TOYOTA | 42431-0K280 |
| TOYOTA | 42431-60130 |
| TOYOTA | 42431-60200 |
| TOYOTA | 42431-60201 |
| TOYOTA | 4243160190 |
| TOYOTA | 4243160270 |
| TOYOTA | 4243160295 |
| TRUSTING | DF521 |
| TRW | DF4484 |
| TRW | DF7126 |
| ZEKKERT | BS-5145 |
| ZIMMERMANN | 590280720 |
| ZIMMERMANN | 590280752 |
| Copyright © 2024 | |
| Years | Eng Vol | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 09.02~08.09 | 3000 | 5L-E | LJ120L | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 09.02~08.09 | 3000 | 5L-E | LJ125 | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 09.02~08.09 | 2700 | 2TR-FE | TRJ120 | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 09.02~08.09 | 4000 | 1GR-FE | GRJ120W | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 09.02~08.09 | 4000 | 1GR-FE | GRJ121R | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 09.02~08.05 | 3400 | 5VZ-FE | VZJ121 | FR0441V | FP0976 | FR0328V | FP0606 | FT1098 |
| 09.02~08.09 | 2700 | 3RZ-FE | RZJ120 | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 09.02~08.09 | 2700 | 3RZ-FE | RZJ125 | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 09.02~08.09 | 4000 | 1GR-FE | GRJ125L | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 09.02~08.09 | 2700 | 2TR-FE | TRJ125 | FR0332V | FP0976 | FR0328V | FP0606 | |
| 09.02~08.09 | 3000 | 1KD-FTV | KDJ120L | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 09.02~08.09 | 3000 | 5L-E | LJ120R | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 09.02~08.09 | 4000 | 1GR-FE | GRJ120L | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 09.02~08.09 | 4000 | 1GR-FE | GRJ120R | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 08.04~08.09 | 2700 | 2TR-FE | TRJ120L | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 11.02~08.09 | 3000 | 1KD-FTV | KDJ120W | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 08.04~08.09 | 3000 | 1KD-FTV | KDJ120R | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 09.02~08.05 | 3400 | 5VZ-FE | VZJ120W | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 09.02~08.05 | 3400 | 5VZ-FE | VZJ125 | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 09.02~08.09 | 3000 | 1KZ-TE | KZJ120L | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 09.02~08.09 | 3000 | 1KZ-TE | KZJ120R | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 08.04~08.09 | 2700 | 2TR-FE | TRJ120R | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 08.04~08.09 | 2700 | 2TR-FE | TRJ125L | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 09.02~08.09 | 2700 | 3RZ-FE | RZJ120R | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 09.02~08.04 | 2700 | 3RZ-FE | RZJ120L | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 07.07~12.22 | 4000 | 1GR-FE | GSJ15L | FR0551V | FP0976 | FR0328V | FP0606 | FT1098 |
| 01.06~07.09 | 4000 | 1GR-FE | GSJ10L | FR0551V | FP0976 | FR0328VFR0658V | FP0606 | FT1098 |
| 11.02~08.09 | 4000 | 1GR-FE | GRN210 | FR0551VFR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 11.02~09.05 | 3000 | 1KZ-TE | KZN215L | FR0551V | FP0976 | FR0328V | FP0606 | FT1098 |
| 11.02~08.09 | 4000 | 1GR-FE | GRN215L | FR0551VFR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 08.02~05.20 | 4700 | 2UZ-FE | UZN215 | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 08.02~08.09 | 4700 | 2UZ-FE | UZN210 | FR0551VFR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 08.01~12.04 | 3000 | 1KZ-TE | KZN205L | FR0551V | FP0976 | FR0328V | FP0606 | FT1098 |
| 11.02~08.05 | 3400 | 5VZ-FE | VZN215W | FR0551V | FP0976 | FR0328V | FP0606 | |
| 08.04~08.09 | 2700 | 2TR-FE | TRN215W | FR0551V | FP0976 | FR0328V | FP0606 | FT1098 |
| 10.02~08.04 | 2700 | 3RZ-FE | RZN210W | FR0551V | FP0976 | FR0328V | FP0606 | FT1098 |
| 08.05~08.09 | 4000 | 1GR-FE | GRN215W | FR0551V | FP0976 | FR0328V | FP0606 | FT1098 |
| 08.04~07.09 | 2700 | 2TR-FE | TRN210W | FR0551V | FP0976 | FR0328V | FP0606 | FT1098 |
| 11.02~08.05 | 3000 | 1KD-FTV | KDN215W | FR0551V | FP0976 | FR0328V | FP0606 | |
| 11.02~08.05 | 3400 | 5VZ-FE | VZN210W | FR0551V | FP0976 | FR0328V | FP0606 | FT1098 |
| 11.02~08.04 | 2700 | 3RZ-FE | RZN215W | FR0551V | FP0976 | FR0328V | FP0606 | FT1098 |
| 07.15~ | 2800 | 1GD-FTV | GUN156L | FR1072V | FR0328V | FP1391FP0606 | FT1098 | |
| 12.15~ | 4000 | 1GR-FE | GGN155L | FR1072V | FP0976 | FR0328V | FT1081FP1391 | FT1098 |
| 01.16~ | 2400 | 2GD-FTV | GUN155R | FR1072VFR0430V | FR0658VFR0328V | FP0606FP1391 | FT1098 | |
| 01.16~ | 2700 | 2TR-FE | TGN156L | FR1072V | FR0658VFR0328V | FT1081FP0606FP1391 | FT1098 | |
| 07.20~ | 2400 | 2GD-FTV | GUN166L | FR1072V | FR0328V | FP1391 | FT1098 | |
| 07.15~ | 2400 | 2GD-FTV | GUN165L | FR1072V | FR0328V | FT1081FP1391 | FT1098 | |
| 01.16~ | 2700 | 2TR-FE | TGN166L | FR1072V | FR0658VFR0328V | FT1081FP0606FP1391 | FT1098 |
| 09.00~12.07 | 4700 | 2UZ-FE | UCK45 | FP0772FP0976 | FR0328V | FP0606 | FT1098 | |
| 01.00~05.07 | 4700 | 2UZ-FE | UCK35 | FP0772FP0976 | FR0328V | FP0606 |
